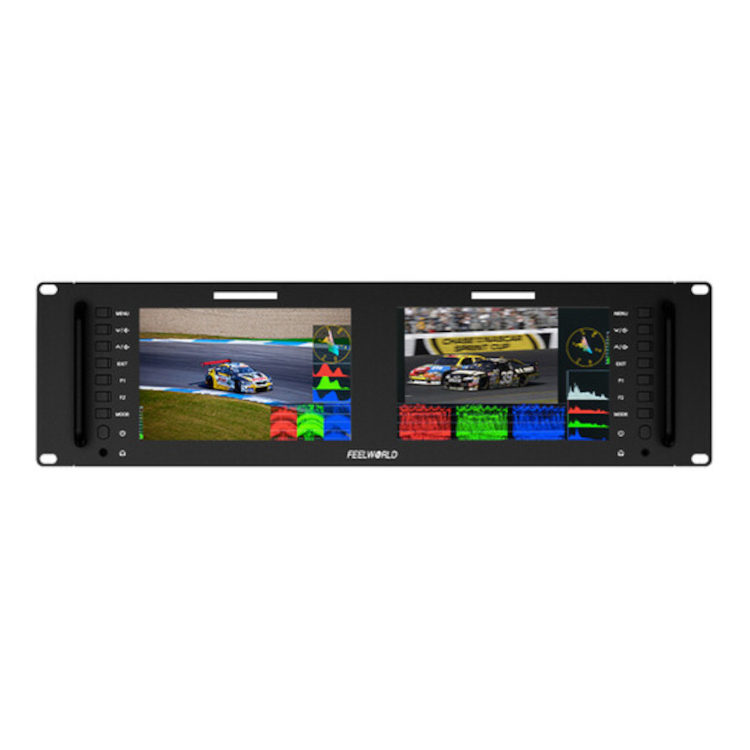

D71 PLUS Dual Rack Monitor SDI

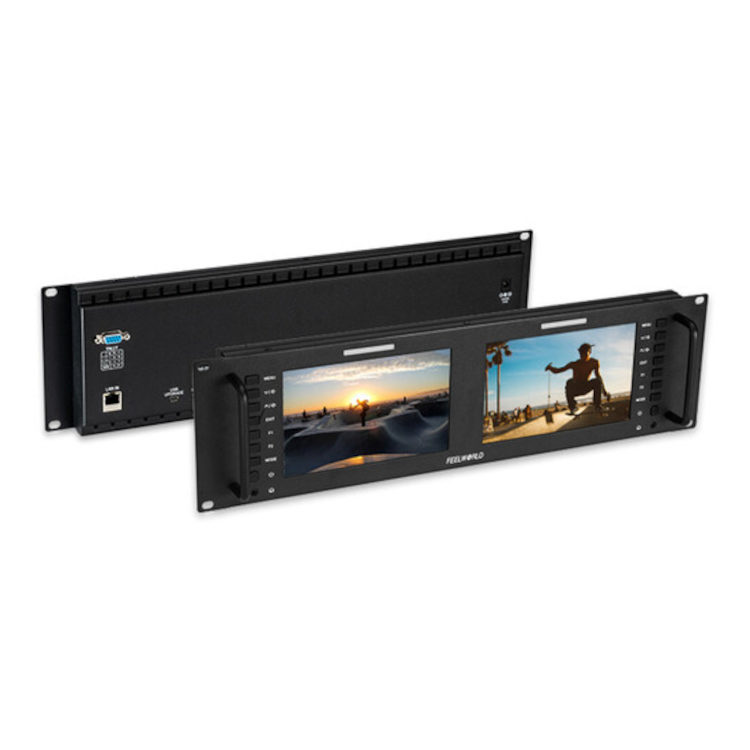

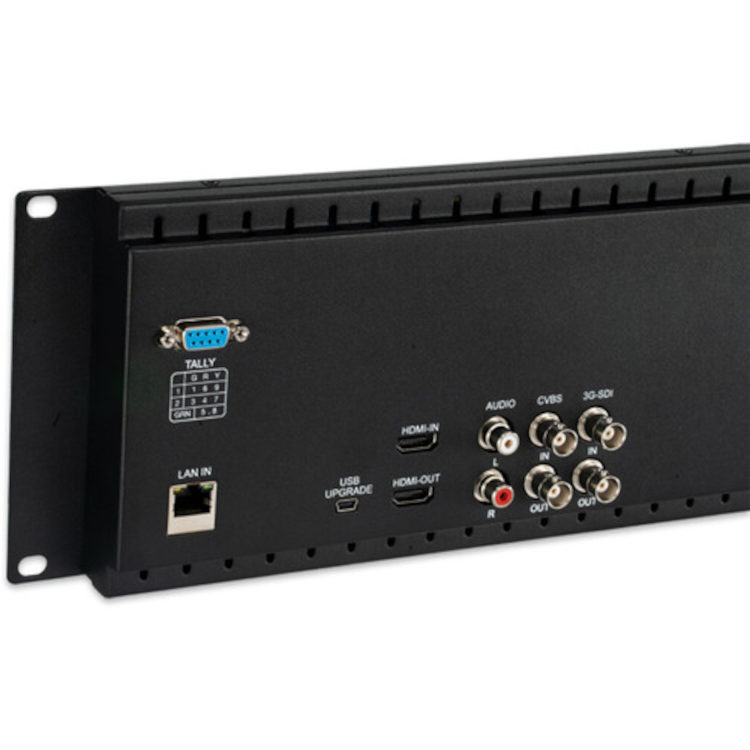

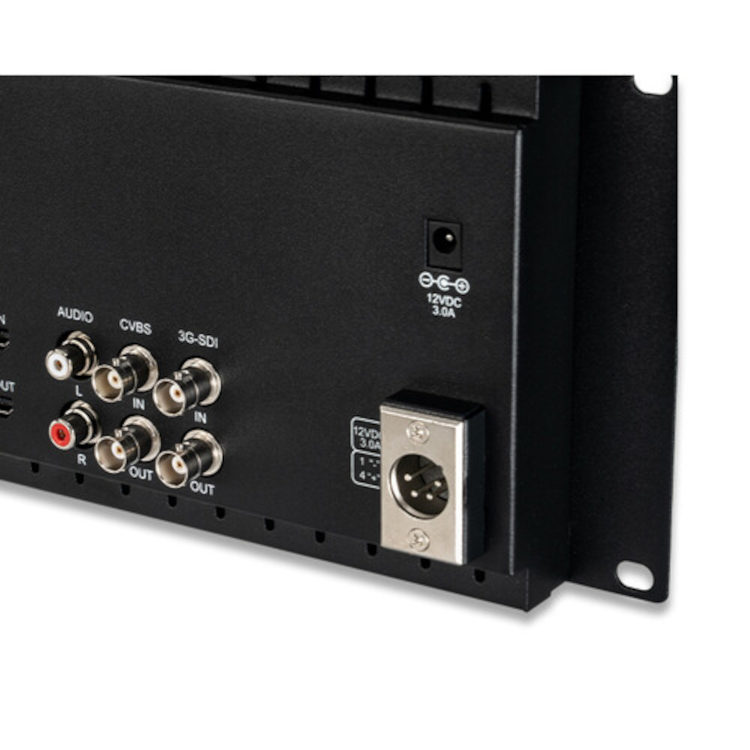

Rack Monitor Your complete live production solution The Feelworld D71 PLUS Dual Rack Monitor SDI features two 7 inch screens in a very slim RU design. It has a LAN port for network control and is designed to provide efficient broadcast monitoring of up to two video signals. Highlights Two 7' 1900 x 1200 IPS displays Up to 4K input via HDMI, 1080p via SDI Numerous image analysis functions Inputs and outputs This model features 3G SDI, HDMI and composite BNC inputs and outputs per screen, as well as RCA audio inputs for each panel. Each panel also has a headphone jack. There is a single tally port at the rear and a three colour tally above each screen. Consistent monitoring These IPS panels have a resolution of 1920 x 1200 pixels and a wide viewing angle of 160°, ensuring more consistent monitoring. Via the LAN port, you control multiple D71 Plus units simultaneously via a single control programme.  Metal casing The D71 Plus comes in a metal housing that ensures optimal heat dissipation. It features durable handles for easy handling when installing or removing it from a rack. At the rear is a cylinder input and a 4 pin XLR port to power the D71. Image analysis functions A variety of built in image analysis functions include peaking focus assist, check field, pixel to pixel and zoom all. There are function buttons on the front panel., Two 7' 1900 x 1200 IPS displays 3G SDI, HDMI and composite BNC I/O Up to 4K input via HDMI, 1080p via SDI LAN control of up to multiple units 160° L/R viewing angle RCA audio inputs, headphone outputs Tally Port and 3 colour Tally lights DC cylinder/4 pin XLR power ports 450 cd/m² brightness 1100:1 contrast Numerous image analysis functions 2 year warranty , Feelworld D71 PLUS Dual Rack Monitor SDI Charger Tally kit
